Report No.
:
4420211019103639
Client
:
Nanyang Technological University
Building
:
Research Techno Plaza
E/Type
:
ELECTRICAL FIXTURES
E/Sub Type
:
Electrical Distribution Boards
Equipment
:
Electrical Distribution Boards
Serial
:
DB3504
Location
:
RTP-09-S1 - Utility Room (DB-9-RS-P2)
Time In
:
19/10/2021 10:36 AM
Time Out
:
19/10/2021 10:38 AM
Frequency
:
Yearly
Submit By
:
Sanmugam Thamarai Kannan (Technical Officer)
ELECTRICAL DISTRIBUTION BOARD INSPECTION MAINTENANCE
Seq
Description
Data
Remarks
1
Visual check that electrical installation is free from any physical damage
Yes
2
Check that there is no abnormal humming or hissing sound
Yes
3
Conduct thermal scan on electrical equipment or DB to check for hot spots
Yes
4
Carry out investigation if presence of abnormalities detected:
Seq
Description
Data
Remarks
1
Observe for burnt marks
Pass
2
Check joints and terminations
Pass
3
Tighten all connections
Yes
4
Measure current to ensure no over loading of connected electrical appliances or equipment
Yes
5
Check rated current circuit breakers is within the design load capacity
Yes
6
Report findings and recommend follow up corrective actions where necessary. Monitor and repeat thermal scan where necessary.
Yes

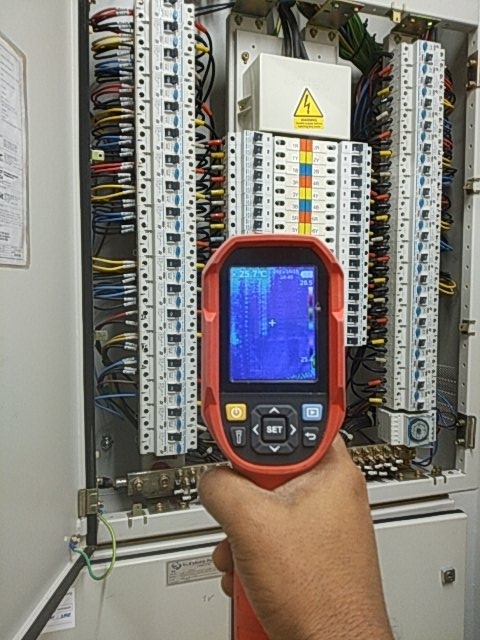

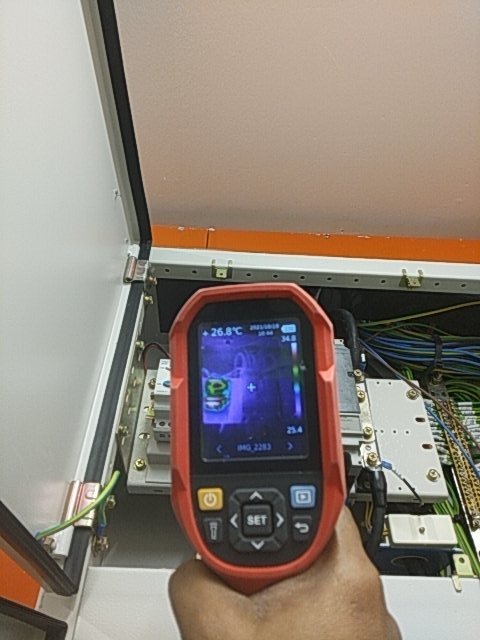

Photo(s)
:
Photo(s)
:
19/10/2021 10:38 AM
19/10/2021 10:38 AM
Signature(s)
:
(Acknowledged by)
Kannan
19/10/2021 10:38 AM
Approver Signature(s)
:
:
